Are You Facing These Issues In Production?
- Inconsistent dosing leads to color variations?
- Manual mixing causes material waste and high defect rates?
- Frequent downtime due to recipe changes?
Why Choose Xiaojuren Machinery?
±0.5% Precision Control
Automatically weighs each ingredient for perfect dosing accuracy.

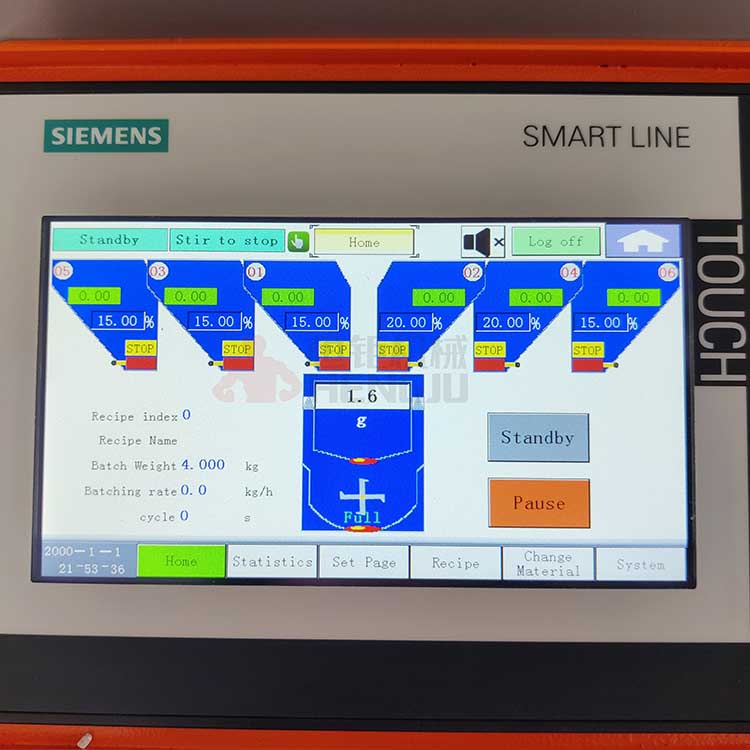

Smart Touch screen Interface
Easy to operate and manage multiple formulas with one click.
Wide Compatibility

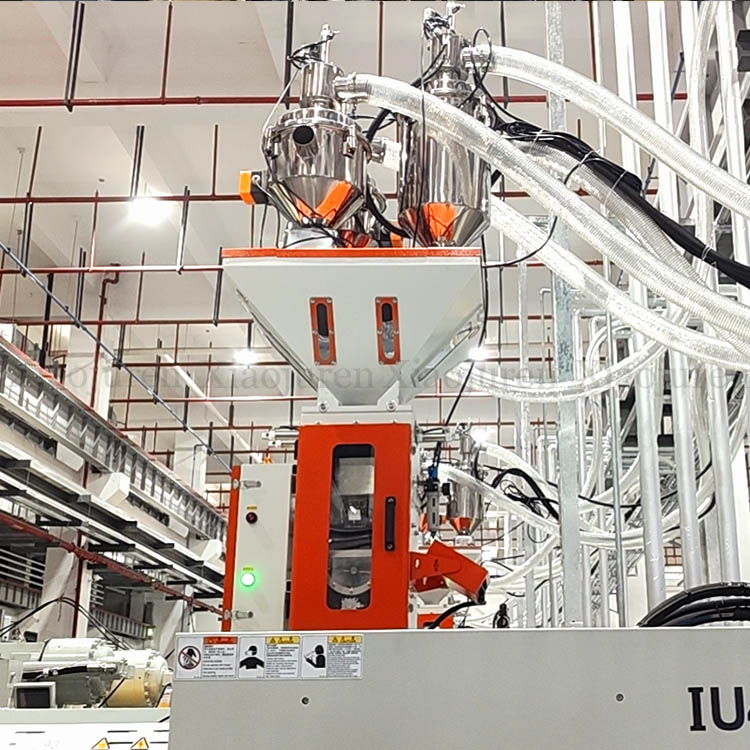

Suitable for injection molding, extrusion, blow molding, and more.
Cost Saving
Reduce raw material waste by up to 10%, cut defect rates significantly.
FAQ
Can the gravimetric blender be connected to the ERP system and MES system?
Yes, no problem. It has four protocols: TCP, UDP, ISOon TCP, and Modbus TCP. Please check which protocol your system uses.
Is it possible to automatically skip when one of the components has no materials (such as crushed materials), and continue to mix the remaining formulas and operate normally?
Okay. we can customized program. We can add a low level sensor on the ground material buffer hopper, and when ground material is lower then that sensor, it will give signal to the PLC, and PLC will skip that material. For example, your recipe is virgin 70%+ground 20%+color 2%+additive 8%, when lack of ground material, PLC will skip it, so the blender will work at virgin 70%+color 2%+additive 8%.
Do the valves operate well with ground material? Can the valves be blocked by any type of material?
Most ground materials are fine, no problem, our gravimetric blender can process them normally.
Is calibration easy to perform?
Yes, it’s easy. and we can provide operation video
Can the language of the operating system be customized?
Yes, no problem. Our standard languages
Typical Project Applications
Xiaojuren Gravimetric Blenders: Precision Dosing for Peak Performance
Empower your plastic manufacturing operations with the Xiaojuren Gravimetric Blender, engineered for superior accuracy and unwavering stability. This advanced system expertly manages the precise dosing and mixing of diverse plastic materials, including virgin resins, additives, regrind, and color masterbatches. Its proven reliability makes it an indispensable asset across a wide spectrum of industries, from automotive and plastic packaging to home appliances, pipes, sheets, medical products, and even cutting-edge biodegradable plastics.

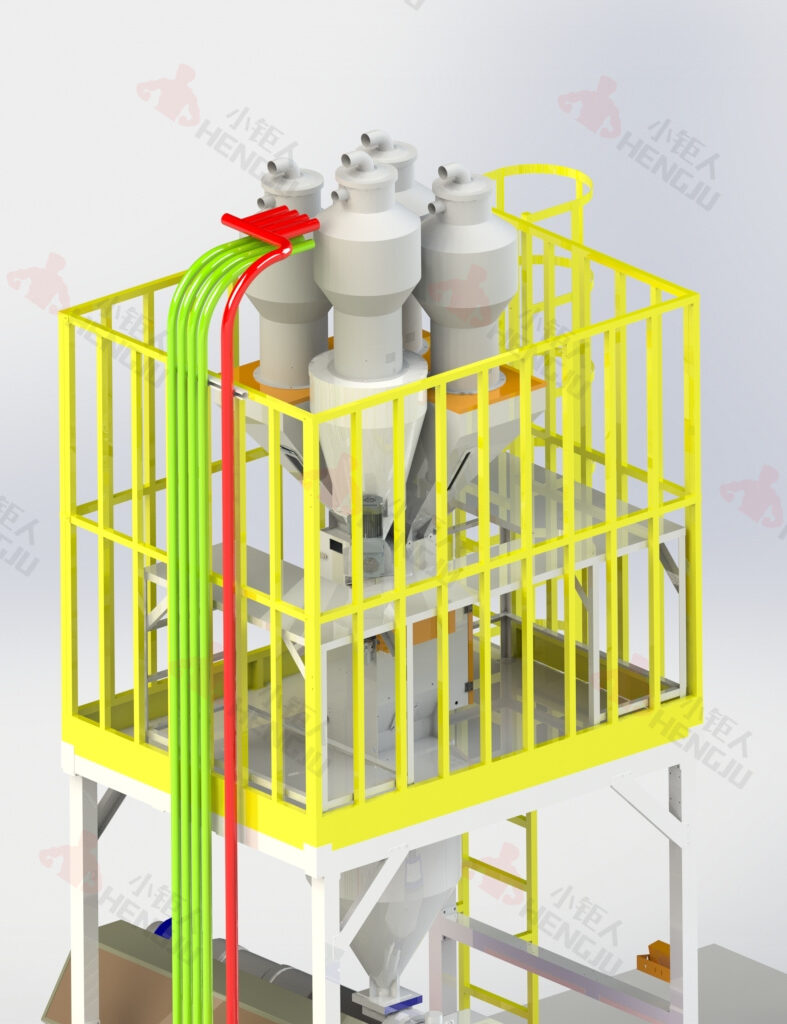

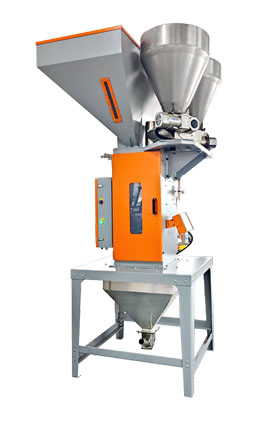

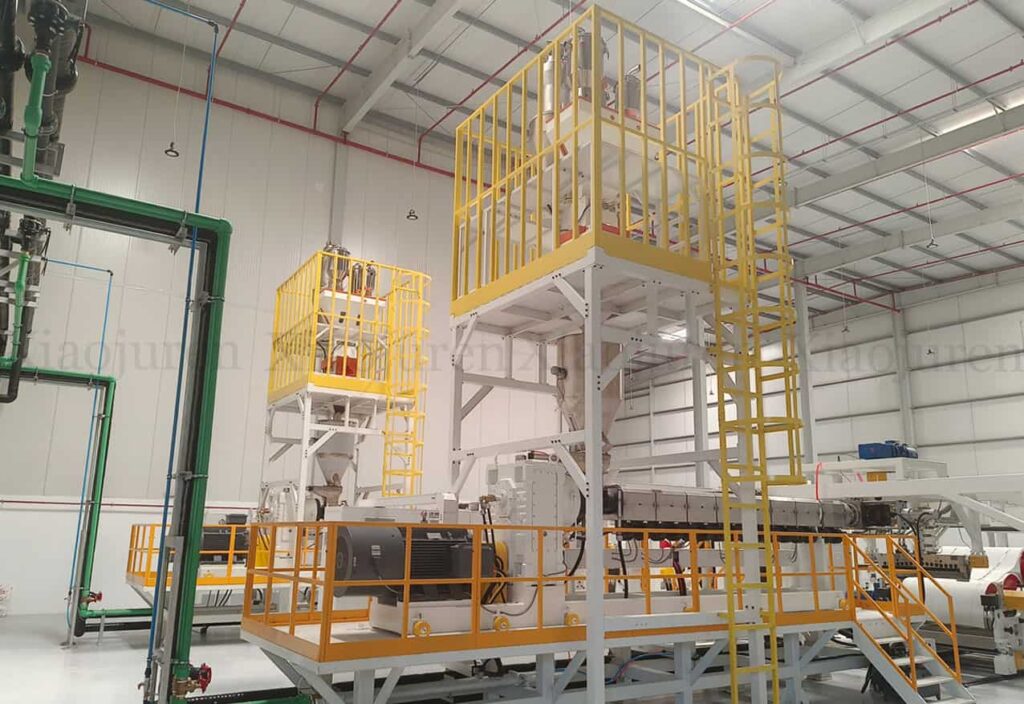

Gravimetric Mixer With Screw Feeder For PP, PS, and PET Crushed Materials

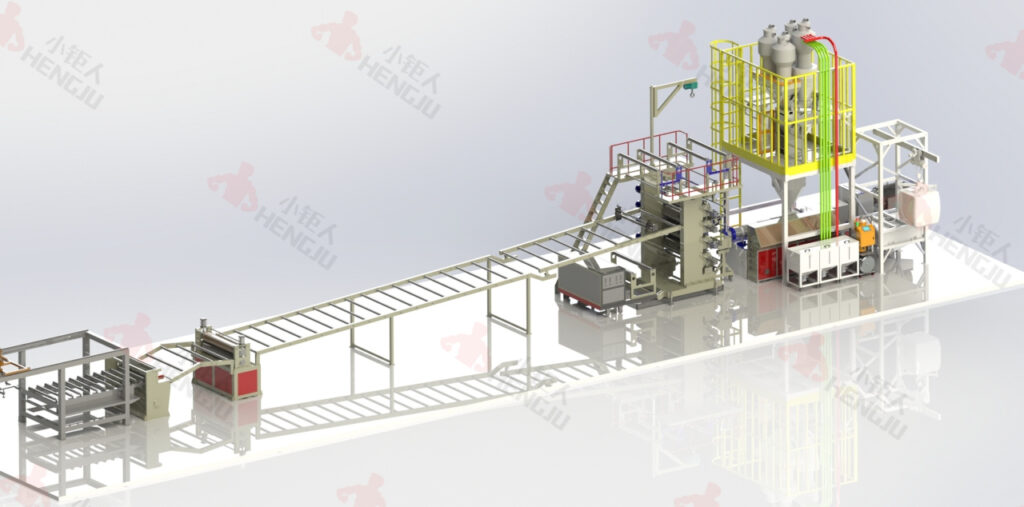

This gravimetric blender is specially developed for customers who makes PP, PS, and PET sheet extrusion. In their production, customers will use a large amount of crushed materials, including recycled material from trim edge and thermowaste rolls. If they use traditional gravimetric batch blender, the crushed materials are easy to bridge and get stuck, but this specially designed gravimetric batch blender with screw feeding can solve those problem perfectly.

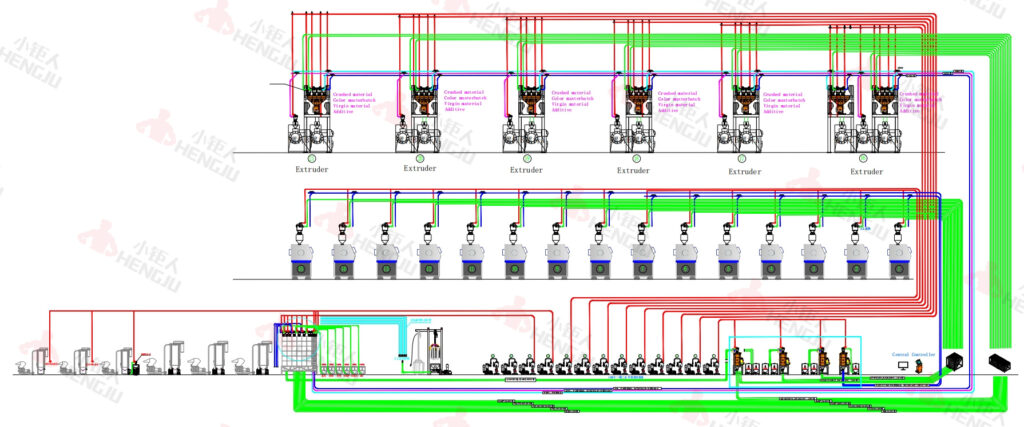

Gravimetric blenders are widely used in white goods production, including injection molding and sheet extrusion. During sheet extrusion, customer normally use ABS, PS, toughening agent/flexibilizer and color masterbatch. To dose these components automatically and precisely, we need gravimetric blender, which equipped with high sensitivity load cell, can give accurate dosing performance around 0.5%.

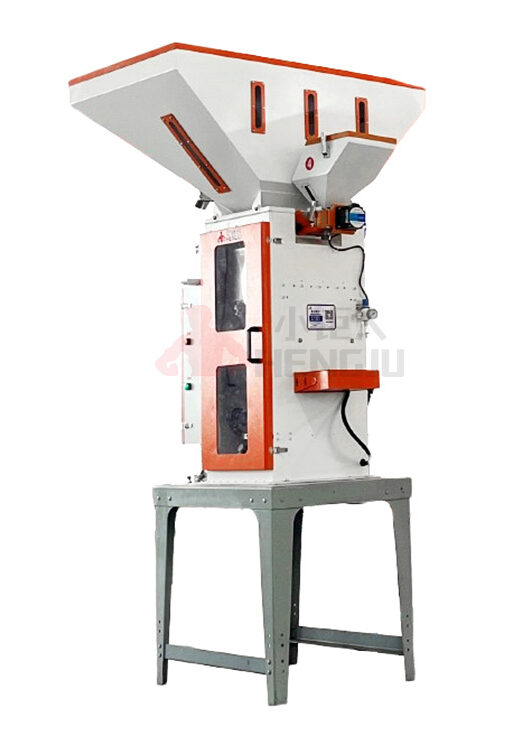

Gravimetric Blender With Screw Feeder For Low Color/Additive Ratio
In the formulas used by some customers, the proportion of color masterbatch or additive is very small, about 0.3% to 0.5%. At this proportion, the standard slide gate valve cannot meet the high precision requirements.
Therefore, we recommend this gravimetric blender with screw feeding. The color masterbatch or additives can be fed into the weighing bin through the screw to achieve high-precision dosing.

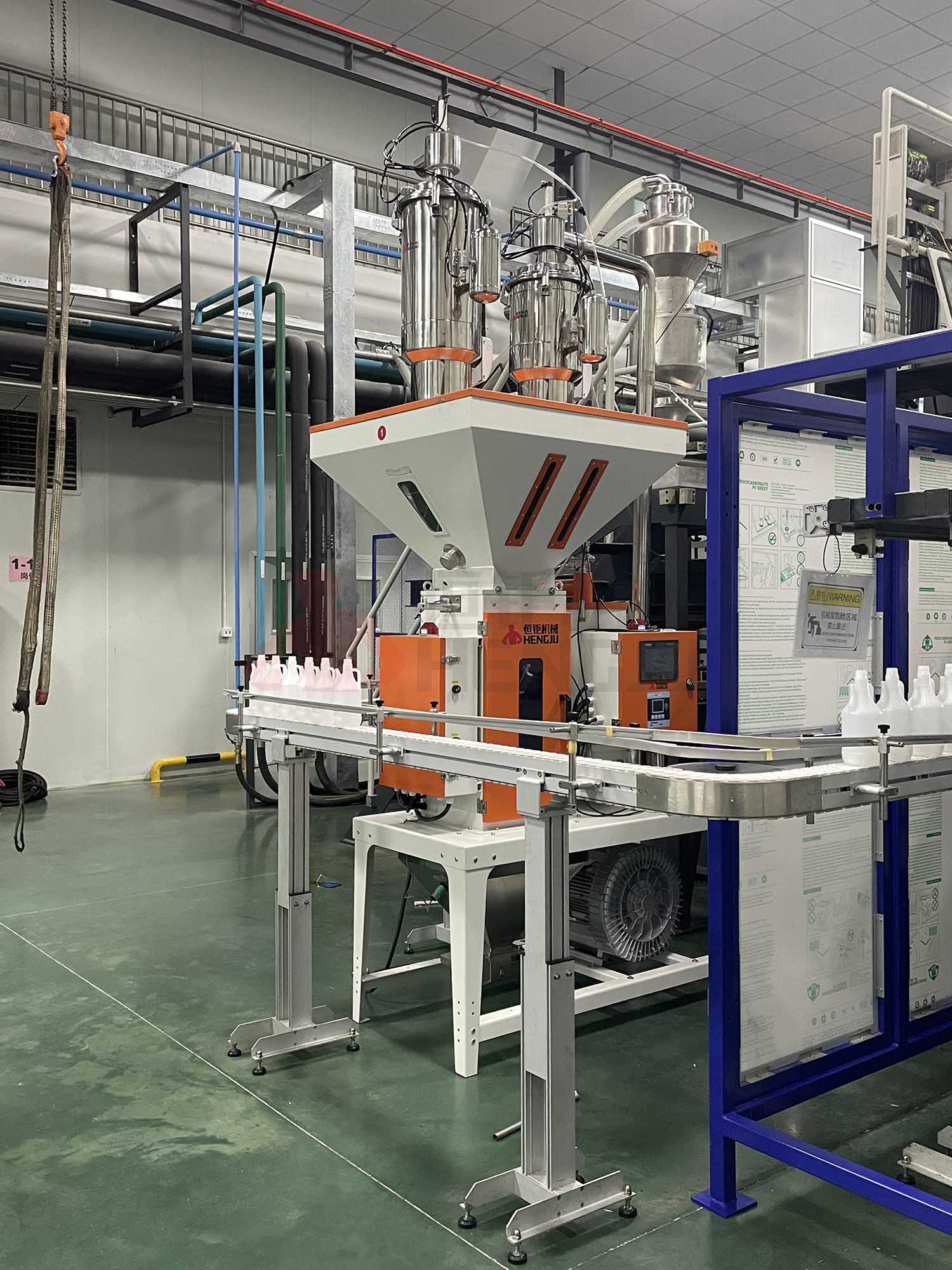

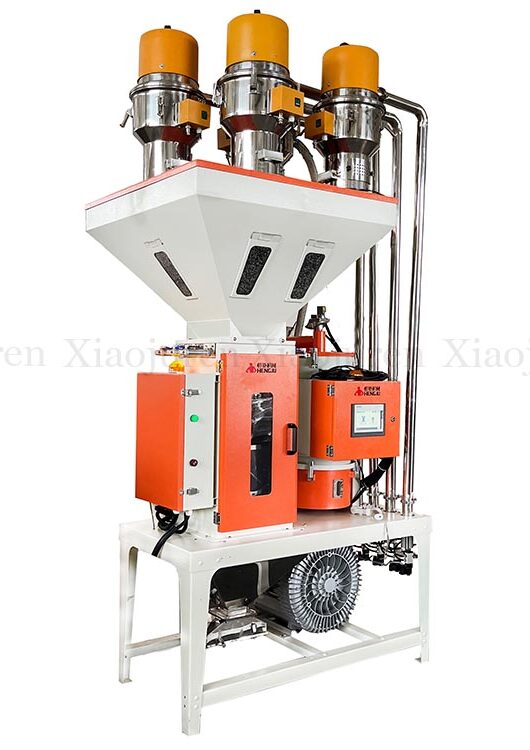

Gravimetric Blender With Loader Unit
In order to save space in the customer’s workshop and simplify the operation, we creatively combined the gravimetric blender and vacuum blower into one unit, and use stainless steel pipes as vacuum air pipe , which makes the equipment more compact and beautiful.

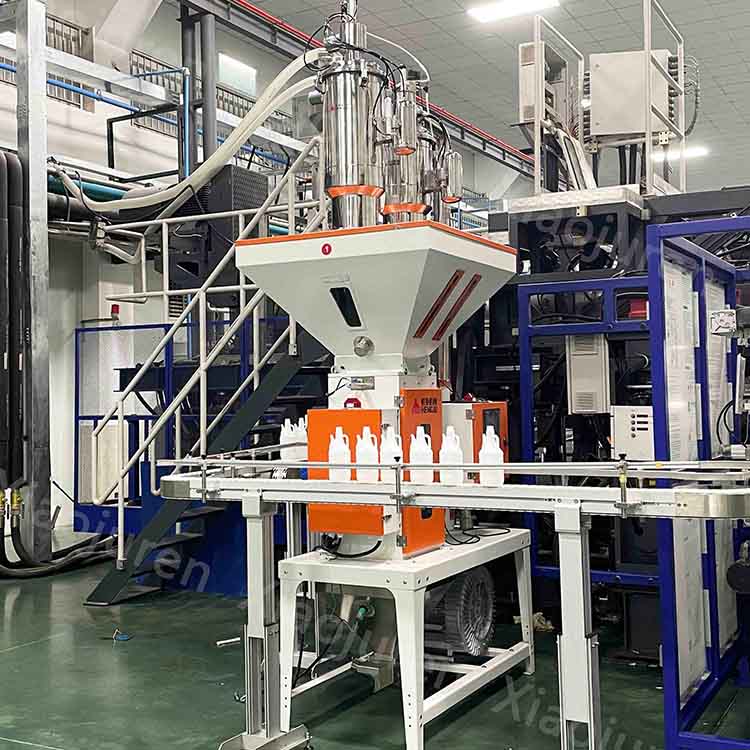

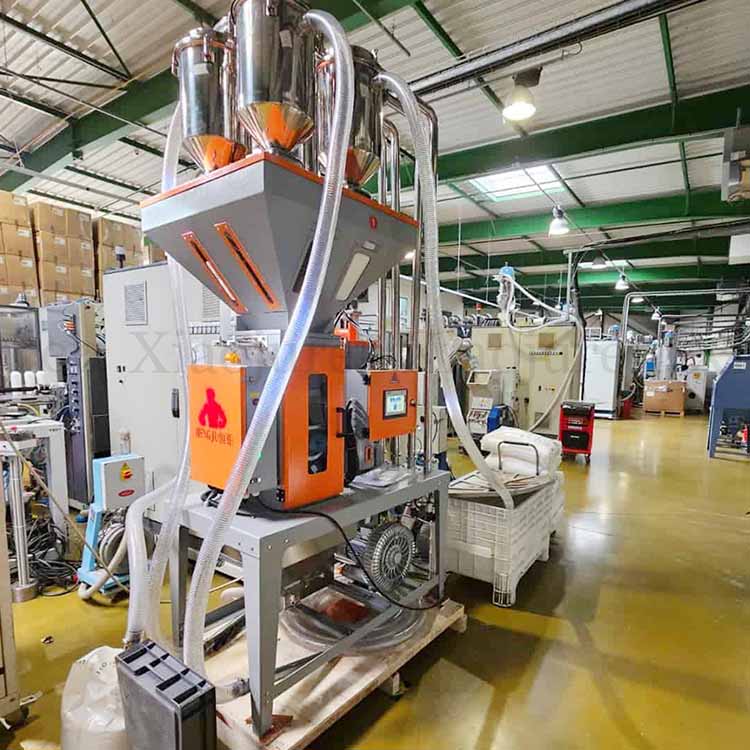

In extrusion blow molding, like production for keg/drum, barrels, jerrycans, plastic bottles, jars and other plastic containers, material dosing and mixing is a very important step before molding. Traditional manual dosing can’t give consistent and accurate performance, which leads to material waste and labor waste. While gravimetric blenders can solve those problems.

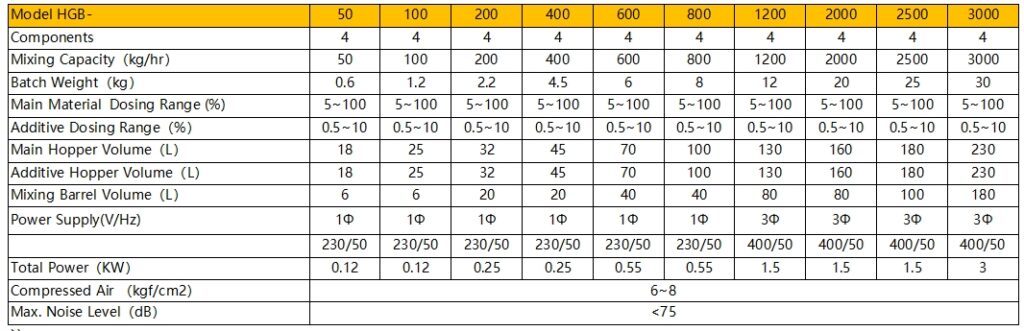

Technical Specifications
About Xiaojuren Machinery
Your Partner in Smart Factory Solutions
Established in 2014, Guangdong Xiaojuren Machinery has grown into a leading innovator in plastic auxiliary equipment. With our expansive 8,000㎡ factory and numerous patents, we’ve dedicated ourselves to advancing automation in the plastics industry.
Since our inception, our focus has been on delivering comprehensive solutions, including central conveying systems, central chiller plants, automatic unpacking machines, storage silos, and a wide array of other essential auxiliary equipment. Our deep industry experience allows us to provide advanced automation solutions across injection molding, extrusion, blowing, and pelletizing processes. We’ve proudly served hundreds of enterprises, offering tailor-made solutions designed to empower our clients to build intelligent feeding systems and achieve full plant automation.
